商品詳細

石油化学工業用ブロック溶接プレート式熱交換器

カテゴリー ,

ASMECEbv

証明書 ASME, NB, CE, BV, SGS etc.

設計温度： -20~320℃

設計圧力： Vacuum~3.2MPa

Surface area: 0.6 ~600m2

Nominal dia.: DN25~DN1000

Plate thickness : 0.8~2.0mm

Plate material: 304L, 316L, 904L, 254SMO, Duplex SS, Titanium

カテゴリー ,

このアイテムを共有する：

フェイスブック ツイッター Youtube インスタグラム ベアンス

商品詳細

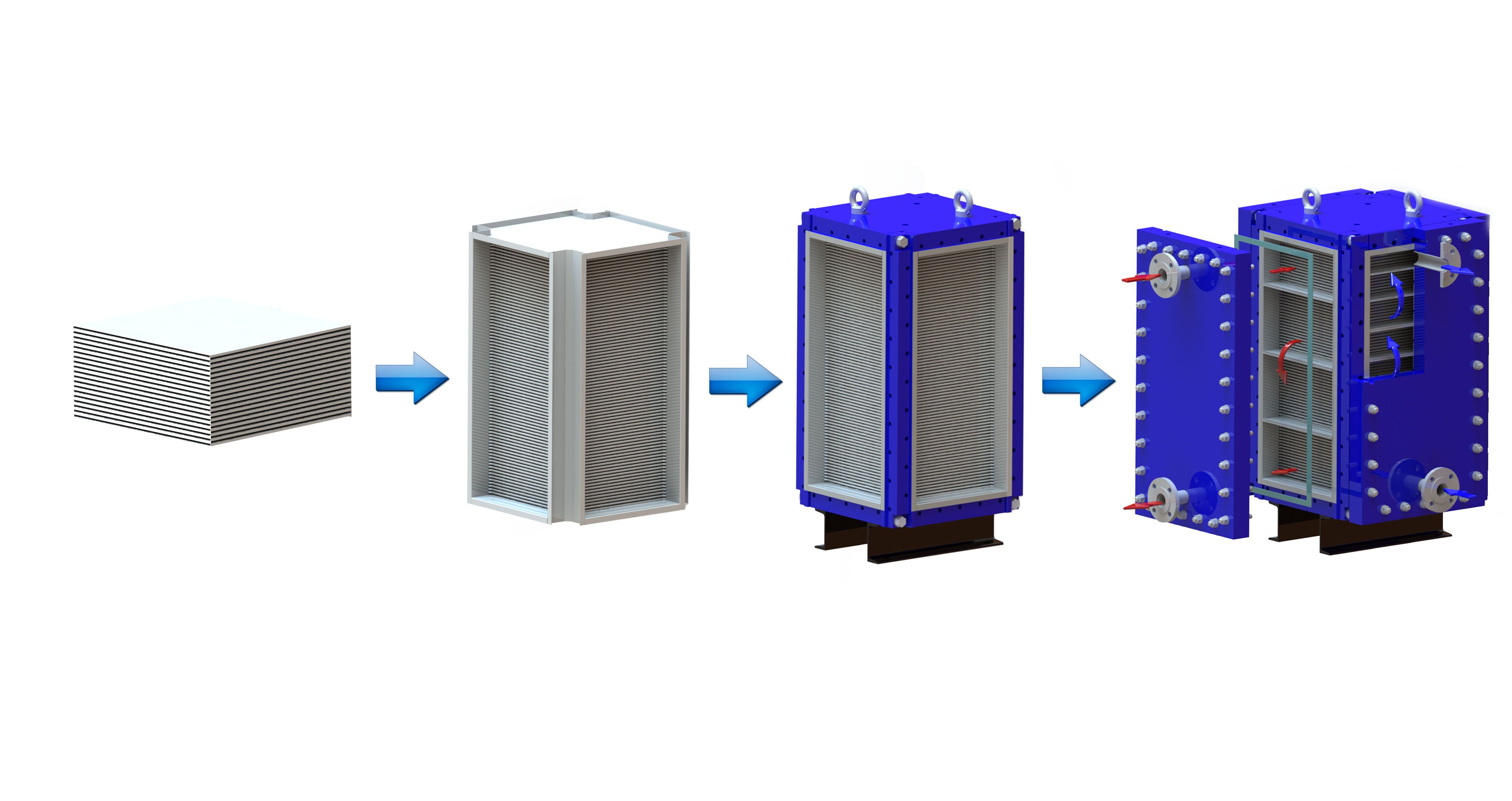

How it works

compabloc plate heat exchanger

The cold and hot media flow alternately in welded channels between the plates.Each medium flows in a cross-flow arrangement within each pass. For multi-pass unit, the media flow in countercurrent.The flexible flow configuration makes both sides keeping the best thermal efficiency. And the flow configuration can be rearranged to fit the change of the flow rate or temperature in the new duty.



MAIN FEATURES

Plate pack is fully welded without gasket——The frame can be disassembled for repair and cleaning—— Compact structure and small footprint——High heat transfer efficient——The butt welding of plates avoid risk of crevice corrosion——Short flow path fit low-pressure condensing duty and allow very low pressure drop——A variety of flow form meets all kinds of complex heat transfer process.

Plate heat exchanger

APPLICATIONS

Refinery——Pre-heating of crude oil——Condensation of gasoline, kerosene, diesel, etc——Natural gas——Gas sweetening, decarburization—lean/rich solvent service——Gas dehydration—heat recovery in TEG systems——Refined oil——Crude oil sweetening—edible oil heat exchanger——Coke over plants——Ammonia liquor scrubber cooling——Benzoilzed oil heating, cooling
