Product Details

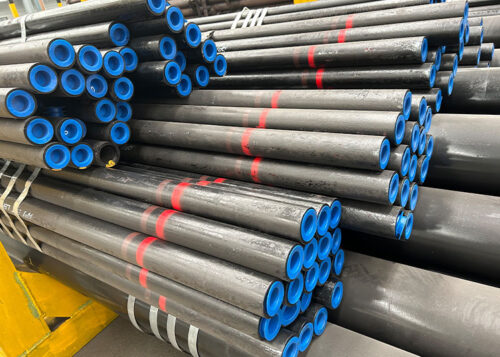

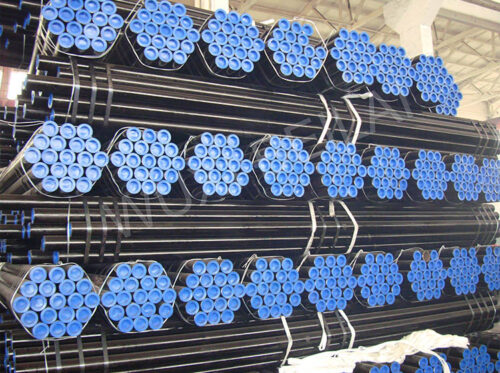

ASME B36.10 LINE PIPE
ASME B36.10M line pipes
welded and seamless
Share This Items :
Product Details
ASME B36.10M is the standard specification for welded and seamless wrought steel pipes which are used for high or low temperatures and pressures. This standard is also extensively used for welded and seamless pipes made from other ferrous and non-ferrous alloys such as stainless steel, nickel, titanium zirconium,tantalum, aluminum and copper, etc. Beilai produce line pipe according to ASMEB36.10M
Standards and technical terms of products
API SPEC 5L Specification for line pipe
ISO 3183 Petroleum and natural gas industries-steel pipe for pipeline transportation system.
GB/T9711 Pipe line used for transport system in oil and gas industry
ASME B36.10 Welded and seamless wrought steel pipe
ANSI/NACE MR0175 Metals for sulfide stress cracking and stress corrosion cracking resistance in sour oilfield
ANSI/NACE TM0177 Laboratory testing of metal for resistance to sulfide stress cracking and stress Corrosion cracking in H2S environment
ISO15156 Petroleum and natural gas industries -materials for use in H2S containing environment in oil and gas production
Size
OD: Ø21.3mm- Ø219.1mm, wall thickness:2.77mm-22.23mm
| DN(mm) | NPS(in) | OD(mm) | 10 | 20 | 30 | STD/40 | 60 | XS/80 | 100 | 120 | 140 | 160 | XXS |
| 15 | 1/2 | 21.3 | 2.77 | 3.73 | 4.78 | 7.47 | |||||||
| 20 | 3/4 | 26.7 | 2.87 | 3.91 | 5.56 | 7.82 | |||||||
| 25 | 1 | 33.4 | 3.38 | 4.55 | 6.35 | 9.09 | |||||||
| 32 | 1 1/4 | 42.2 | 3.58 | 4.85 | 6.35 | 9.70 | |||||||
| 40 | 1 1/2 | 48.3 | 3.68 | 5.08 | 7.14 | 1.015 | |||||||
| 50 | 2 | 60.3 | 3.91 | 5.54 | 8.74 | 11.07 | |||||||
| 65 | 2 1/2 | 73.0 | 5.16 | 7.01 | 9.53 | 14.02 | |||||||
| 80 | 3 | 88.9 | 5.49 | 7.62 | 11.13 | 15.24 | |||||||
| 90 | 3 1/2 | 101.6 | 5.74 | 8.08 | |||||||||
| 100 | 4 | 114.3 | 6.02 | 8.56 | 11.13 | 13.49 | 17.12 | ||||||
| 125 | 5 | 141.3 | 6.55 | 9.53 | 12.70 | 15.88 | 19.05 | ||||||
| 150 | 6 | 168.3 | 7.11 | 10.97 | 14.27 | 18.26 | 21.95 | ||||||
| 200 | 8 | 219.1 | 6.35 | 7.04 | 8.18 | 10.31 | 12.70 | 15.08 | 18.26 | 20.62 | 23.01 | 22.23 |
Chemical composition
| Grade | Chemical composition/% Max | |||||||
| C | Si | Mn | P | S | V | Nb | Ti | |
| L245/B | 0.28 | – | 1.20 | 0.030 | 0.030 | – | – | – |
| L290/X42 | 0.28 | – | 1.30 | 0.030 | 0.030 | – | – | – |
| L320/X46 | 0.28 | – | 1.40 | 0.030 | 0.030 | – | – | – |
| L360/X52 | 0.28 | – | 1.40 | 0.030 | 0.030 | – | – | – |
| L390/X56 | 0.28 | – | 1.40 | 0.030 | 0.030 | – | – | – |
| L415/X60 | 0.28 | – | 1.40 | 0.030 | 0.030 | – | – | – |
| L450/X65 | 0.28 | – | 1.40 | 0.030 | 0.030 | – | – | – |
| L485/X70 | 0.28 | – | 1.40 | 0.030 | 0.030 | – | – | – |
| Note: Date in the composition of PSL1:PSL2 The composition can be negotiated by both parties | ||||||||
Mechanical property requirements
| Grade | Yield strength/Mpa | Yield strength/Mpa | Yield ratio | CVN/J | ||||||
| PSL1(Min) | PSL2 | PSL1(Min) | PSL2 | PSL1(Min) | PSL2 | |||||
| -N,Q | -NS,QS | -N,Q | -NS,QS | -N,Q | -NS,QS | |||||
| L245/B | 245 | 245~450 | 245~450 | 415 | 415~655 | 415~655 | – | ≤0.93 | ≤0.93 | ≥27 |
| L290/X42 | 2900 | 290~495 | 290~495 | 415 | 415~655 | 415~655 | – | |||
| L320/X46 | 320 | 320~525 | 320~525 | 435 | 435~655 | 435~655 | – | |||
| L360/X52 | 360 | 360~530 | 360~530 | 460 | 460~760 | 460~760 | – | |||
| L390/X56 | 390 | 390~545 | 390~545 | 490 | 490~760 | 490~760 | – | |||
| L415/X60 | 415 | 415~565 | 415~565 | 520 | 520~760 | 520~760 | – | |||
| L450/X65 | 450 | 450~600 | 450~600 | 535 | 535~760 | 535~760 | – | |||
| L485/X70 | 485 | 485~635 | 485~635 | 570 | 570~760 | 570~760 | – | |||
| L555/X80 | 555~705 | 625~825 | ≥40 | |||||||
| Note:Line pipe for other special service environment will be manufactured based on the negotiation resule of both sides. | ||||||||||
